3000W UV Curing System Features
1. Good adhesion: Both the deep and surface layers are cured simultaneously, resulting in a dense coating.
2. High quality: Low heat generation, reducing substrate deformation and waste.
3. No clogging: No problems with mercury-free lamp electrodes/nozzles becoming clogged.
4. Can operate intermittently: No energy consumption while idle, no need for preheating with exhaust air.
5. Small footprint: The entire device can be significantly reduced in size.
6. No risk of lamp explosion: No quartz glass structure.
7. Quiet operation: No noise from high-frequency ballasts.
Specification of UV LED Curing System
| Item | UV LED Curing System 3000W for flexo printing |
| Power | 3000W wach lamp |
| Color | UV |
| Diode type | 6565/6868 smd type |
| Size | 458mm*95mm*90mm |
| Luminous Size | 280mm*50mm |
| Product | one lamp with one water chiller |
| Wavelength | 365nm,385nm,395nm,405nm |
| Cooling scheme | Water-cooled |
| Application | Apply in various printing industries, painting, and glue. |
| optional | Full set , Multiple lamps with power cabinets |
| Lifespan (hours) | 20000 hours |
| Warranty | 1 year |
| Place of Origin | Shenzhen, Guangdong, China |
About US
Shenzhen Yuanming Technology Co., Ltd. specializes in the production and operation of high-power
UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
products. The product power range is from 0.5W to 10000W. Mainly used for flexographic printing
machines, printing machines, pad printing machines, screen printing machines, offset printing machines,
coating machines, exposure machine, inkjet printing machine, coating, leather, glass, metal, furniture,
car paint detection, fluorescence detection, pet urine detection,PCB and other UVink Photocuring.

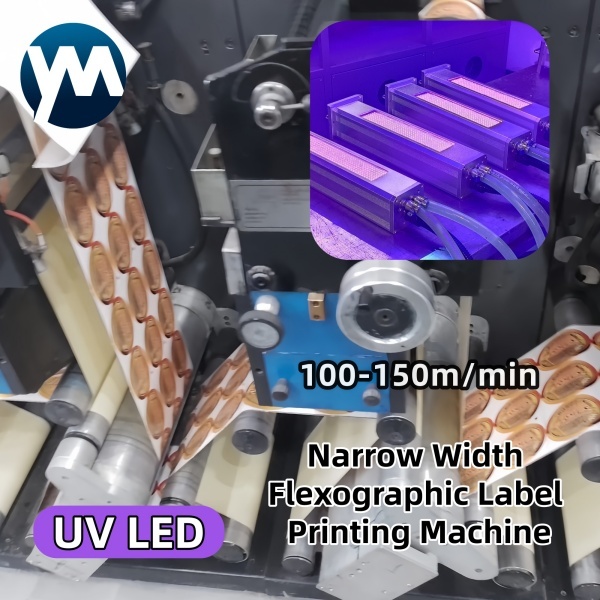

Application of UV Led Curing System
Our
UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
"UV LED" curing lamp is a new technology and new way of drying UV series material resin/ink/varnish/adhesive/coating
etc. by ultraviolet irradiation, with fast speed and good performance.
Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch
PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
FAQ Q1 : Can your products’ label, packaging, design be customized?
A : Yes, we offer customization service on these.
Q2 : What is your monthly production capacity?
A : Our factory production capacity is 10,000 sets of lighting systems per month.
Q3 : What is your minimum order quantity?
A : MOQ 2 set, but we also accept sample order for quality clients.
Q4 : Can I get a sample for quality check?
A : Yes, we offer sample.
Q5 : How soon is the lead time?
A : For sample order, 3-5 days. For bulk order, 9-15 days.
Q6 : What is the lifetime of your lighting systems?
A : Our lighting systems can work at least 3 years, these lighting bulbs should be replaced regularly.
If you have other needs, please contact us to provide you with the best solution.
Umi@ymleduv.com , Thank you for your attention.
